Brand Name : YD
Model Number : YDES-2
Certification : CNEX
Place of Origin : CHINA
MOQ : 10PCS
Price : USD 25- USD 30
Payment Terms : L/C, D/P, T/T
Supply Ability : 2000PCS/MONTH
Delivery Time : 5~30 DAYS ( DEPENDING ON QTY )
Packaging Details : 20PCS/CTN, PKG DIM.: 600X435X200MM, EST.G.W.19KG
COLOR : SILVER
MAT'L : ALUMINUM
Yueding Explosion proof pulsers or sensors is made for installing on fuel dispensers, the signals is transfered from it to computer unit.
Yueding Explosion proof pulsers or sensors YDES-2
Technical performance: | |
Installation size | 120mm×80mm×60mm |
Working voltage | 5VDC |
Working current | 30mA |
Pulsed quantity | 100/200 |
Output channel | 2 |
Signal waveform | Quadratic |
Max rotation rate | 300r/min |
Antihazard classification | Ex d II B T4 |
WE ALSO CAN MAKE IT TO 12VDC.

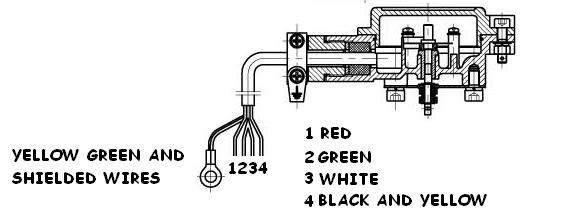

Product Structure Dimension Drawings
![]() |

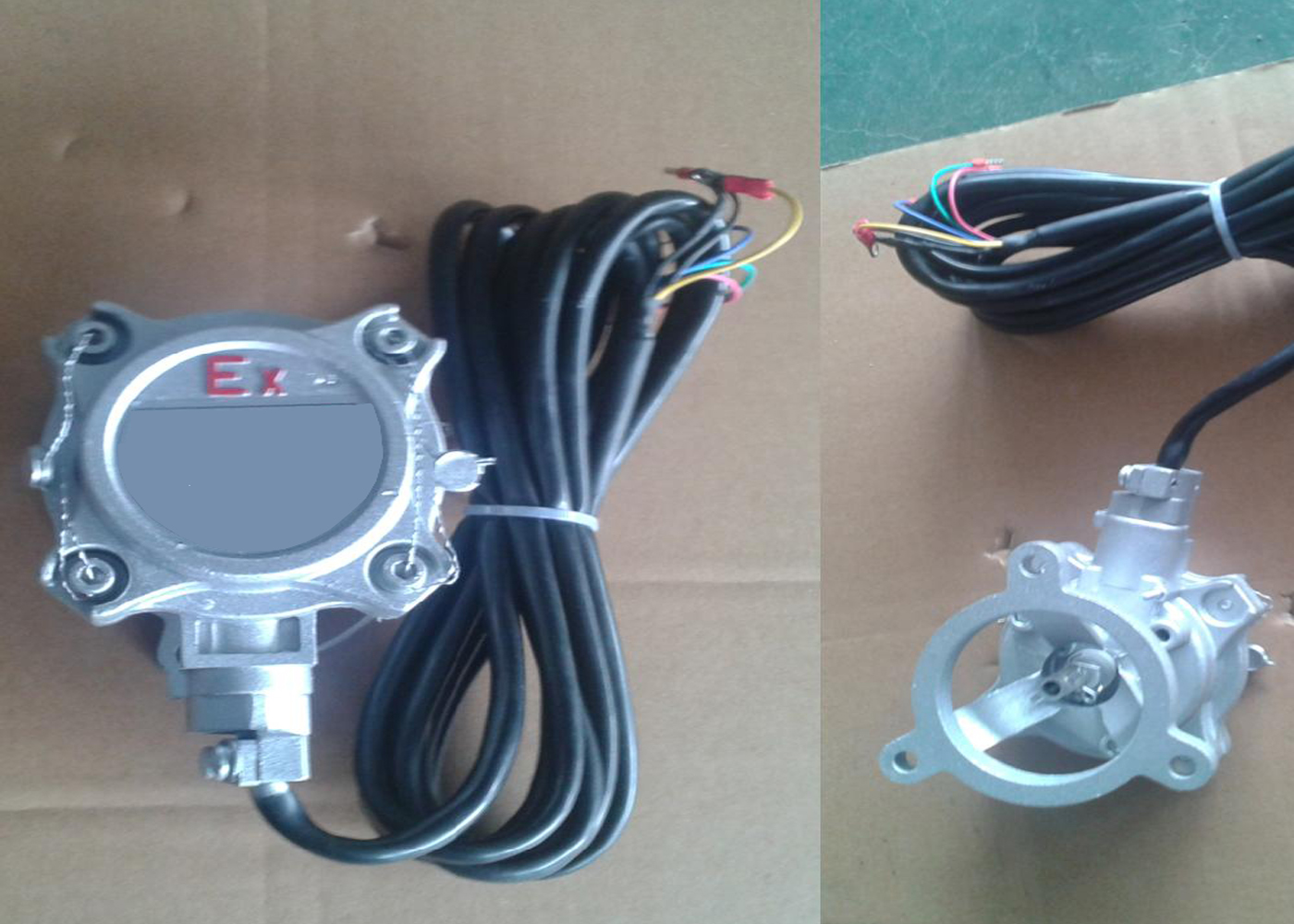

YDES-2 EXPLOSION PROOF PULSERS OR SENSORS WITH 2 HOLES SUPPORT MOUNTED ON FUEL DISPENSERS Images |
