Brand Name : YD

Model Number : YDFM-3

Place of Origin : CHINA

MOQ : 10pcs

Price : USD 89~ 99

Payment Terms : L/C, T/T, Western Union

Supply Ability : 3000PCS/MONTH

Delivery Time : 3~ 30 DAYS ( DEPENDS ON QTY )

Packaging Details : 2PCS/CTN, PKGS DIM. 450x285x260MM,EST.G.W. 11KG/PKG

Color : Silver

Mat'l : Aluminum alloy

Contact Now

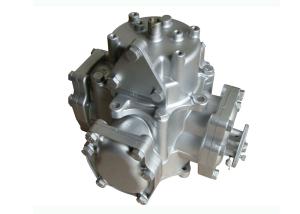

YDFM-3 can be widely used on different gasoline dispensers.

FUEL DISPENSER HIGH PRECISION GOOD OFFER FUEL FLOW METERS OR CALIBRATION UNITS AT A LOW PRICE

This product has advantages as long using term, high precision, firm structure etc.

It can be the best choice of gasoline dispenser components.

The difference betwen YDFM-3, YDFM-4, YDFM-5: the top covers are different .

Technical performance:
Packing size	450mmx285mmx260mm (2 pieces in 1 carton)
Discharge rate of each revolution	0.5L
Rotary direction of axial	CW
Level	234mm
Vertical	225.4mm
Flow range	5～100L/min
Working pressure	0.12MPa-0.35MPa
Accuracy	±0.2%(5L/min-100L/min)
Repeat error	≤0.1%
Working life	≥10000000L

Product Structure Dimension Drawings
